🎯 Automated Pipeline DevOps Project

Complete Infrastructure Automation with Terraform, Ansible & CI/CD on AWS

☁️ AWS 🏗️ Terraform ⚙️ Ansible 🔄 GitHub Actions 🐧 Bash 🌐 Nginx

📋 Project Overview

This project demonstrates a complete DevOps workflow, showcasing Infrastructure as Code (IaC), Configuration Management, and Continuous Integration/Continuous Deployment (CI/CD) practices on AWS Free Tier.

🎯 Objective

Build an automated deployment pipeline that provisions cloud infrastructure and deploys applications with zero manual intervention.

💡 Key Features

  • ✓ Modular Infrastructure Code
  • ✓ Automated Configuration
  • ✓ Complete CI/CD Pipeline
  • ✓ Security Best Practices

🎓 Learning Goals

Master IaC principles, automation scripting, cloud infrastructure management, and modern DevOps practices.

🛠️ Technologies Used

Category Technology Purpose
Infrastructure as Code Terraform Provision AWS resources (VPC, EC2, Security Groups)
Configuration Management Ansible Configure servers and deploy applications
CI/CD GitHub Actions Automate testing, building, and deployment
Cloud Provider AWS Free Tier Host infrastructure (EC2, VPC, IAM)
Scripting Bash Automation and orchestration scripts
Web Server Nginx Serve web application

🏗️ System Architecture

Deployment Pipeline Flow

📝 GitHub Repository
→
🔄 GitHub Actions
→
🏗️ Terraform
→
☁️ AWS Infrastructure
→
⚙️ Ansible
→
🌐 Deployed App

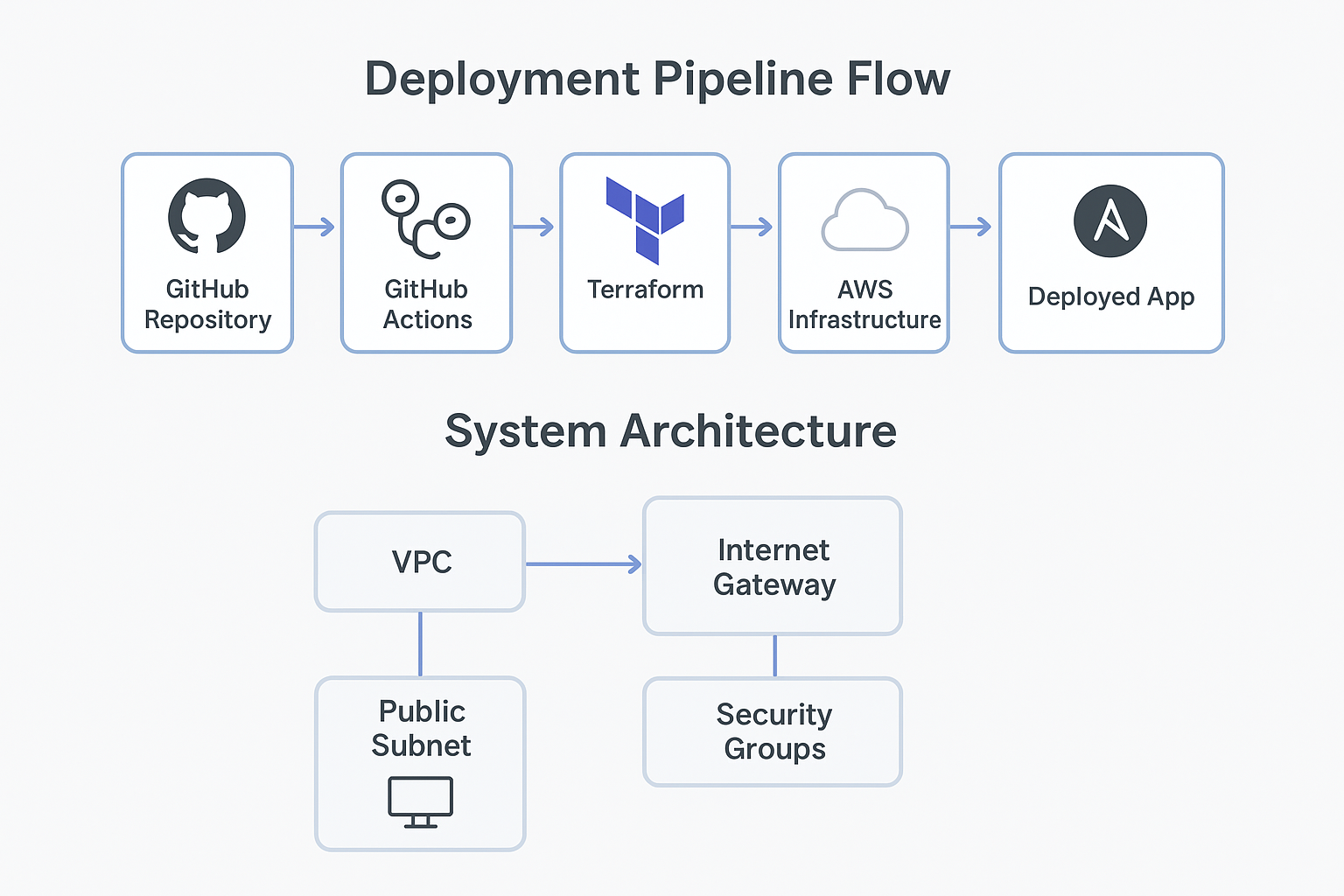

Architecture Diagram
Complete system architecture showing VPC, subnets, EC2, and security groups

🌐 Infrastructure Components

1Network Layer

  • VPC: 10.0.0.0/16 - Isolated network environment
  • Public Subnet: 10.0.1.0/24 - Hosts web servers
  • Internet Gateway: Enables public internet access
  • Route Tables: Routes traffic appropriately

2Compute Layer

  • EC2 Instance: t3.micro (Free Tier eligible)
  • AMI: Rhel 9
  • Storage: 12GB gp2 EBS volume
  • Auto-assigned Public IP: For external access

3Security Layer

  • Security Group Rules:
    • Port 22 (SSH) - Administrative access
    • Port 80 (HTTP) - Web traffic
    • Port 443 (HTTPS) - Secure web traffic
  • IAM Roles: Least privilege access
  • SSH Key Pairs: Secure authentication

⚙️ Environment Setup

📦 Prerequisites

Required Accounts & Tools

  • AWS Account (Free Tier)
  • GitHub Account
  • Terraform >= 1.6.0
  • Ansible >= 2.15.0
  • AWS CLI v2
  • Git
  • SSH client

🔐 AWS Configuration

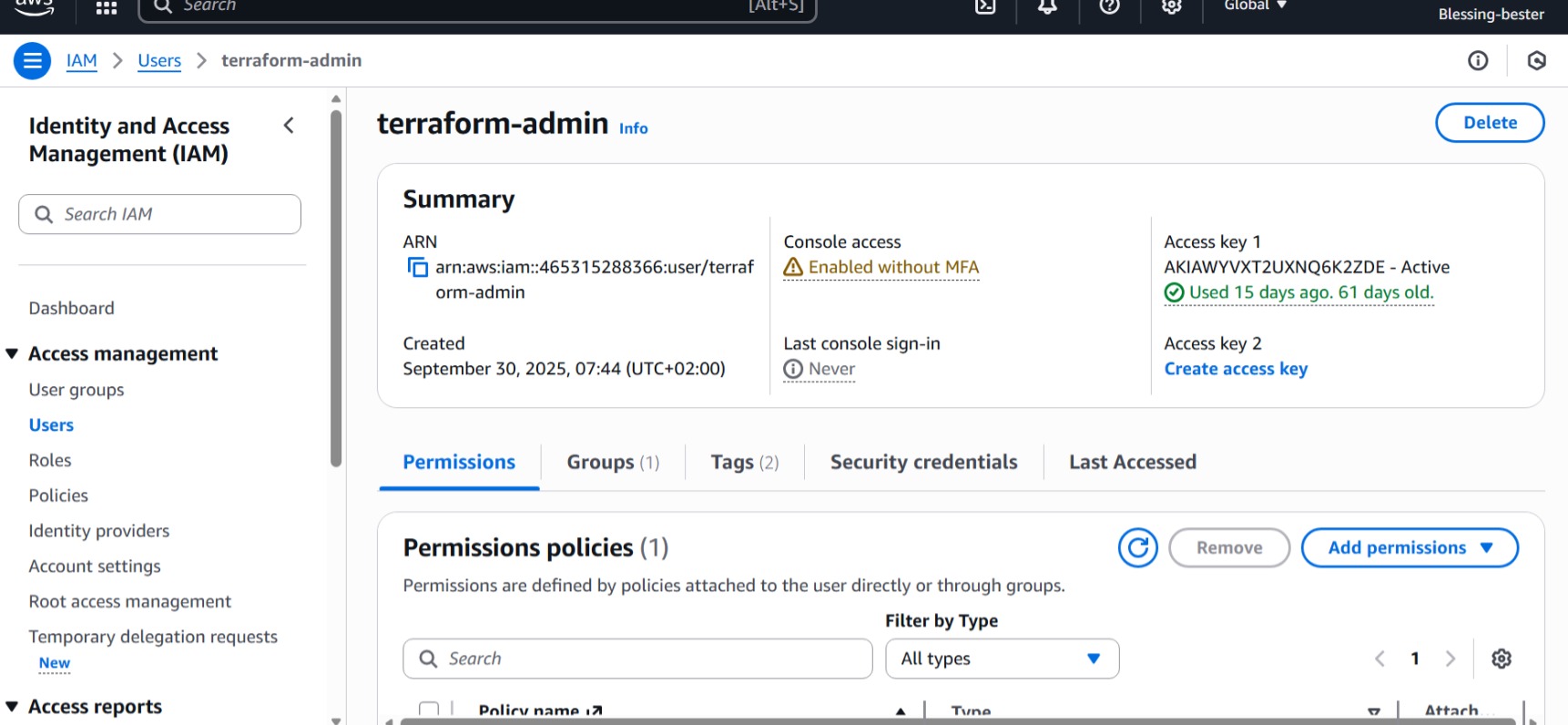

AWS IAM User Creation
Creating IAM user with programmatic access in AWS Console
# Configure AWS CLI with credentials aws configure # AWS Access Key ID: [your-access-key] # AWS Secret Access Key: [your-secret-key] # Default region: us-east-1 # Default output format: json # Verify configuration aws sts get-caller-identity
EC2 Key Pair Creation
Creating EC2 key pair in AWS Console
⚠️ Important: Download and securely store your EC2 private key (.pem file). Set proper permissions: chmod 600 devops-project-key.pem

📁 Project Structure

devops-resume-project/ ├── .github/ │ └── workflows/ │ ├── deploy.yml # CI/CD deployment pipeline │ └── destroy.yml # Infrastructure teardown ├── terraform/ │ ├── modules/ │ │ ├── network/ # VPC, subnets, routing │ │ │ ├── main.tf │ │ │ ├── variables.tf │ │ │ └── outputs.tf │ │ └── compute/ # EC2, security groups │ │ ├── main.tf │ │ ├── variables.tf │ │ └── outputs.tf │ └── environments/ │ └── dev/ │ ├── main.tf │ ├── variables.tf │ └── outputs.tf ├── ansible/ │ ├── playbooks/ │ │ └── deploy_webapp.yml │ ├── templates/ │ │ └── nginx.conf.j2 │ ├── inventory/ │ │ └── hosts │ └── ansible.cfg ├── app/ │ └── index.html # Web application ├── scripts/ │ ├── deploy.sh # Automated deployment │ └── destroy.sh # Cleanup script ├── .gitignore └── README.md

🔨 Implementation Details

1️⃣ Terraform Infrastructure Code

Modular Terraform configuration for provisioning AWS resources.

Network Module (VPC & Networking)

# terraform/modules/network/main.tf resource "aws_vpc" "main" { cidr_block = var.vpc_cidr enable_dns_hostnames = true enable_dns_support = true tags = { Name = "${var.project_name}-${var.environment}-vpc" Environment = var.environment } } resource "aws_internet_gateway" "main" { vpc_id = aws_vpc.main.id tags = { Name = "${var.project_name}-${var.environment}-igw" } } resource "aws_subnet" "public" { vpc_id = aws_vpc.main.id cidr_block = var.public_subnet_cidr map_public_ip_on_launch = true tags = { Name = "${var.project_name}-${var.environment}-public-subnet" } }

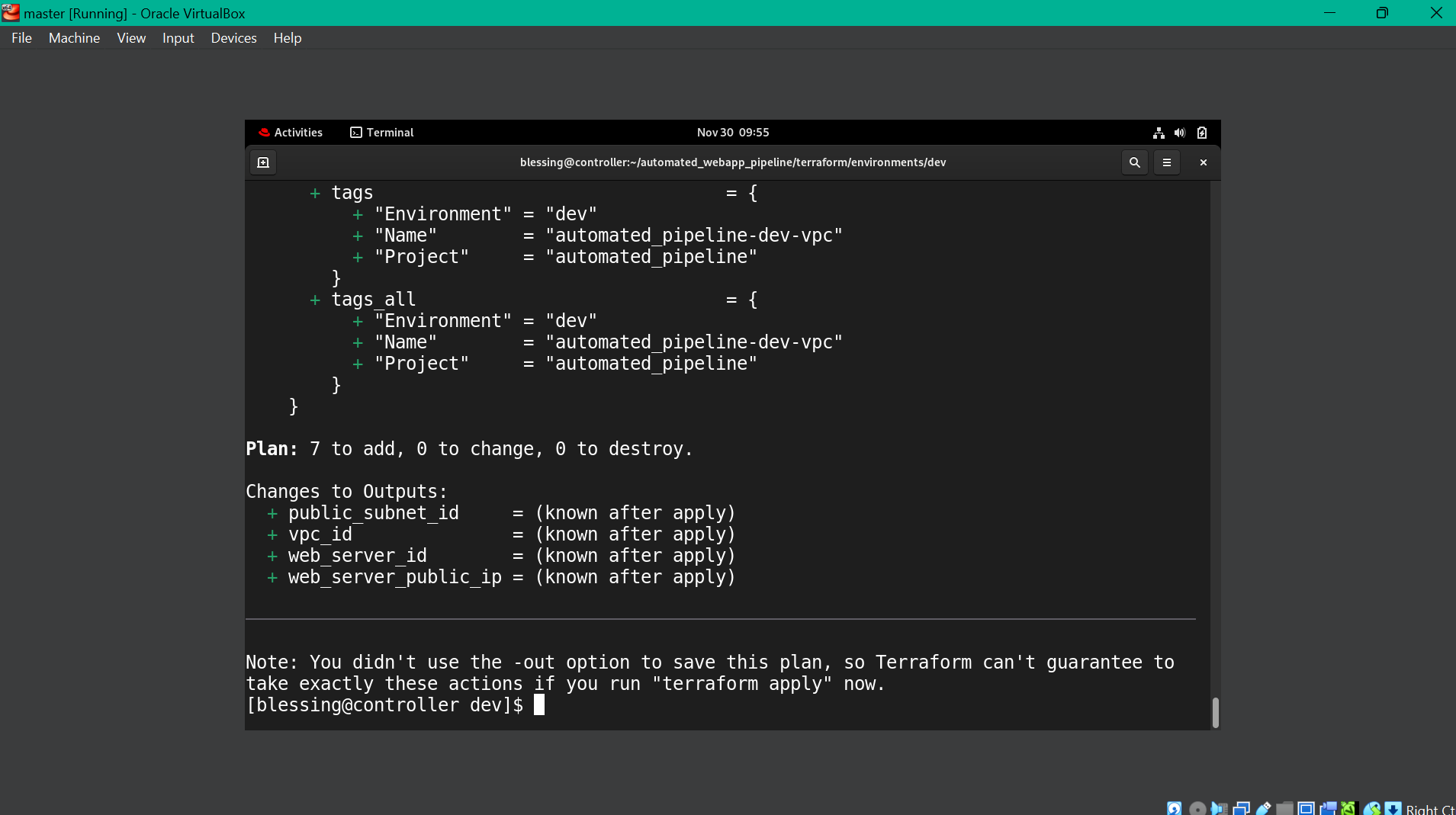

EC2 Key Pair Creation
Terraform Init, Terraform Plan and Terraform Apply

Compute Module (EC2 & Security)

# terraform/modules/compute/main.tf resource "aws_security_group" "web_sg" { name = "${var.project_name}-${var.environment}-web-sg" vpc_id = var.vpc_id ingress { description = "SSH" from_port = 22 to_port = 22 protocol = "tcp" cidr_blocks = ["0.0.0.0/0"] } ingress { description = "HTTP" from_port = 80 to_port = 80 protocol = "tcp" cidr_blocks = ["0.0.0.0/0"] } egress { from_port = 0 to_port = 0 protocol = "-1" cidr_blocks = ["0.0.0.0/0"] } } resource "aws_instance" "web_server" { ami = data.aws_ami.amazon_linux_2.id instance_type = var.instance_type key_name = var.key_name subnet_id = var.public_subnet_id vpc_security_group_ids = [aws_security_group.web_sg.id] tags = { Name = "${var.project_name}-${var.environment}-web-server" Environment = var.environment } }

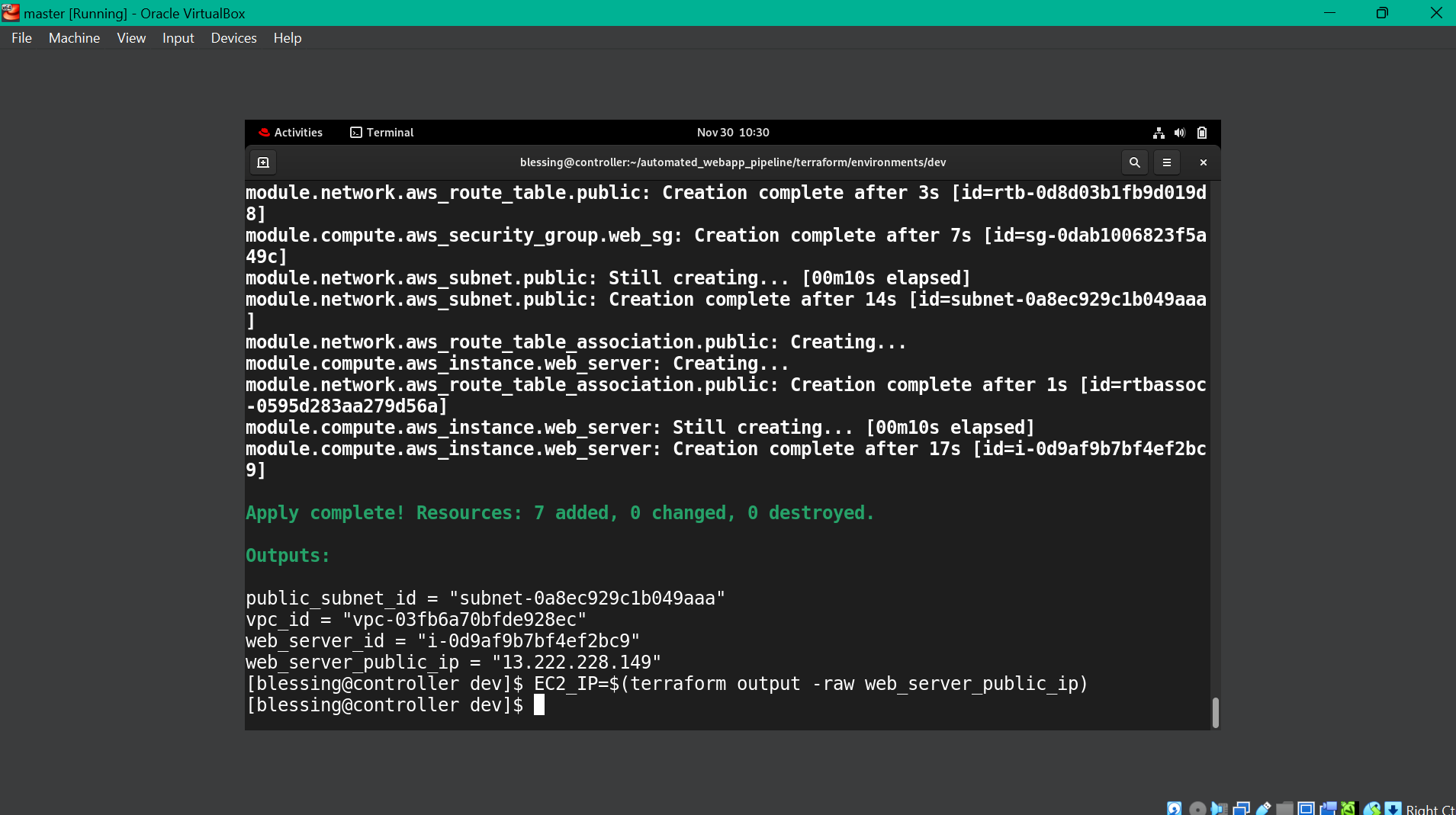

EC2 Key Pair Creation
Terraform Apply success
✅ Result: Infrastructure successfully provisioned with VPC, subnet, Internet Gateway, EC2 instance, and security groups all configured via code.

2️⃣ Ansible Configuration Management

Automated server configuration and application deployment.

Main Playbook

# ansible/playbooks/deploy_webapp.yml --- - name: Deploy Web Application hosts: webservers become: yes tasks: - name: Update all packages yum: name: '*' state: latest update_cache: yes - name: Install required packages yum: name: - git - nginx - python3 state: present - name: Copy application files copy: src: ../../app/ dest: "/opt/devops-resume-app/" owner: webapp group: webapp - name: Configure Nginx template: src: ../templates/nginx.conf.j2 dest: /etc/nginx/conf.d/webapp.conf notify: Restart nginx - name: Ensure Nginx is started systemd: name: nginx state: started enabled: yes handlers: - name: Restart nginx systemd: name: nginx state: restarted

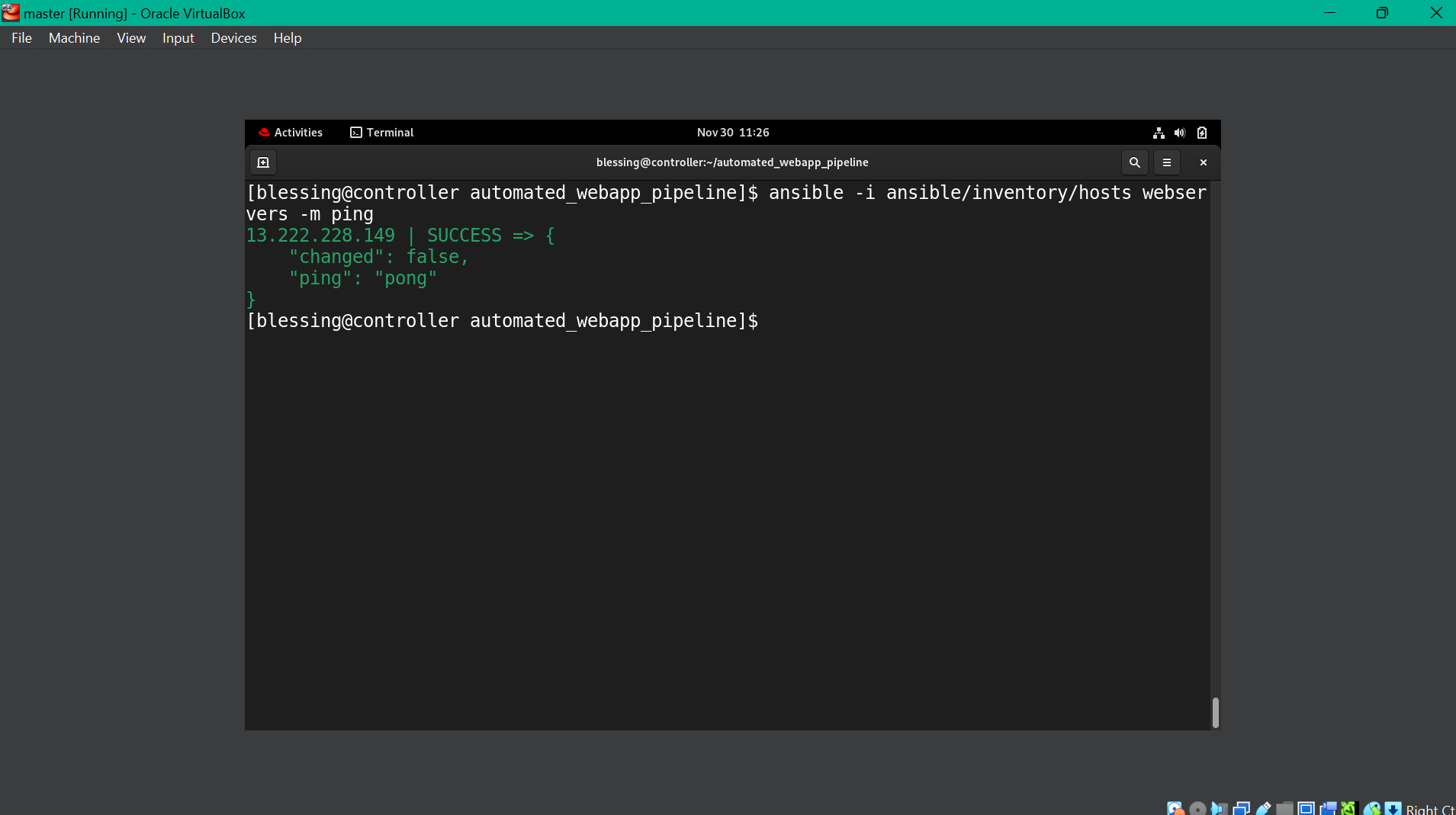

Ansible
Ansible Configuration
💡 Note: Ansible ensures idempotency - running the playbook multiple times produces the same result without duplicating efforts.

3️⃣ Bash Automation Scripts

Orchestration scripts for complete deployment automation.

#!/bin/bash # scripts/deploy.sh set -e print_status() { echo -e "\033[0;32m[INFO]\033[0m $1" } # Check requirements check_requirements() { print_status "Checking requirements..." command -v terraform >/dev/null 2>&1 || { echo "Terraform not found"; exit 1; } command -v ansible >/dev/null 2>&1 || { echo "Ansible not found"; exit 1; } } # Deploy infrastructure deploy_infrastructure() { print_status "Deploying infrastructure with Terraform..." cd terraform/environments/dev terraform init terraform apply -auto-approve cd ../../.. } # Get EC2 IP and deploy application deploy_application()

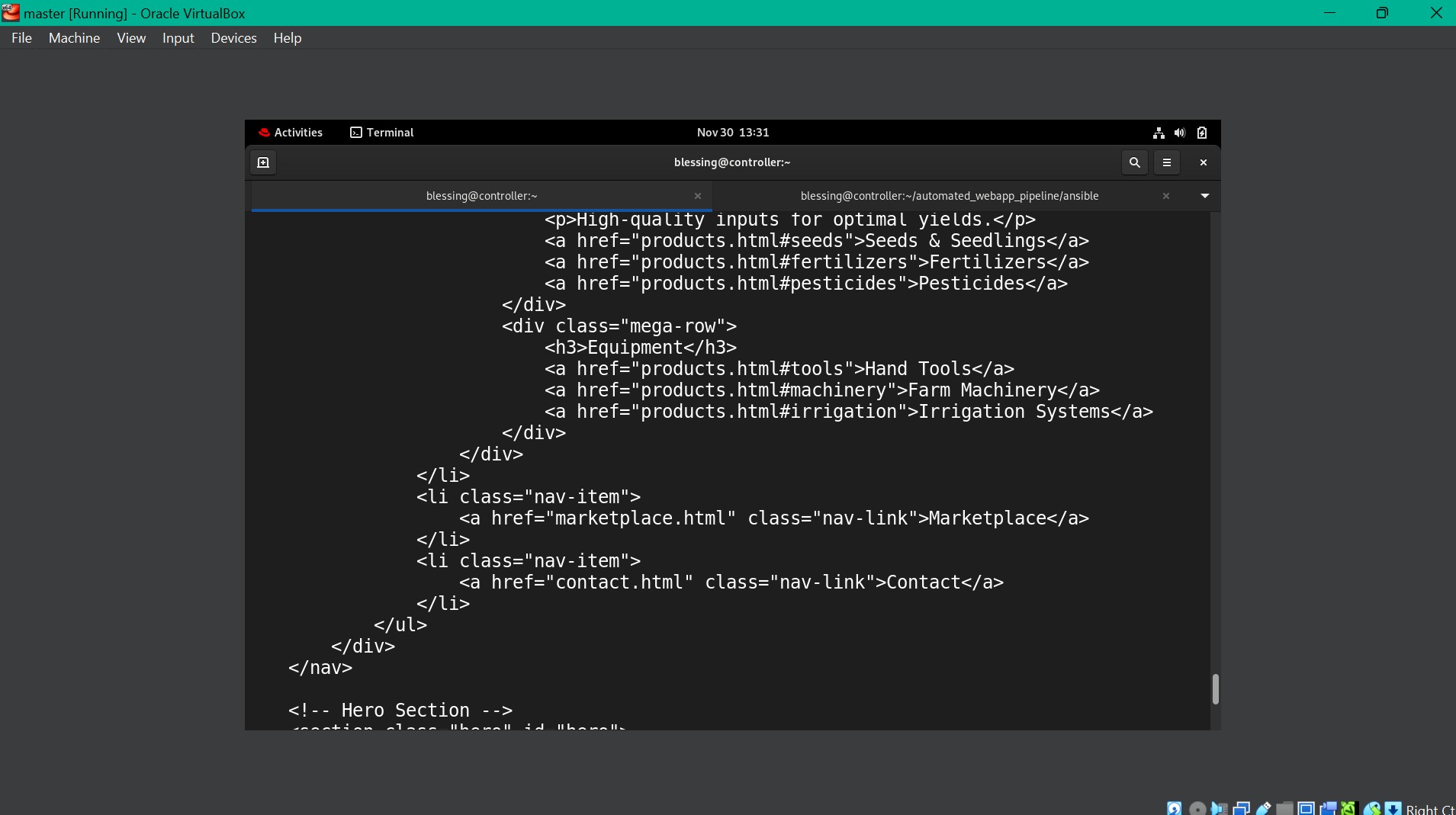

EC2 Key Pair Creation
Bash Script Success
✅ Result: Infrastructure successfully provisioned with VPC, subnet, Internet Gateway, EC2 instance, and security groups all configured via code.
